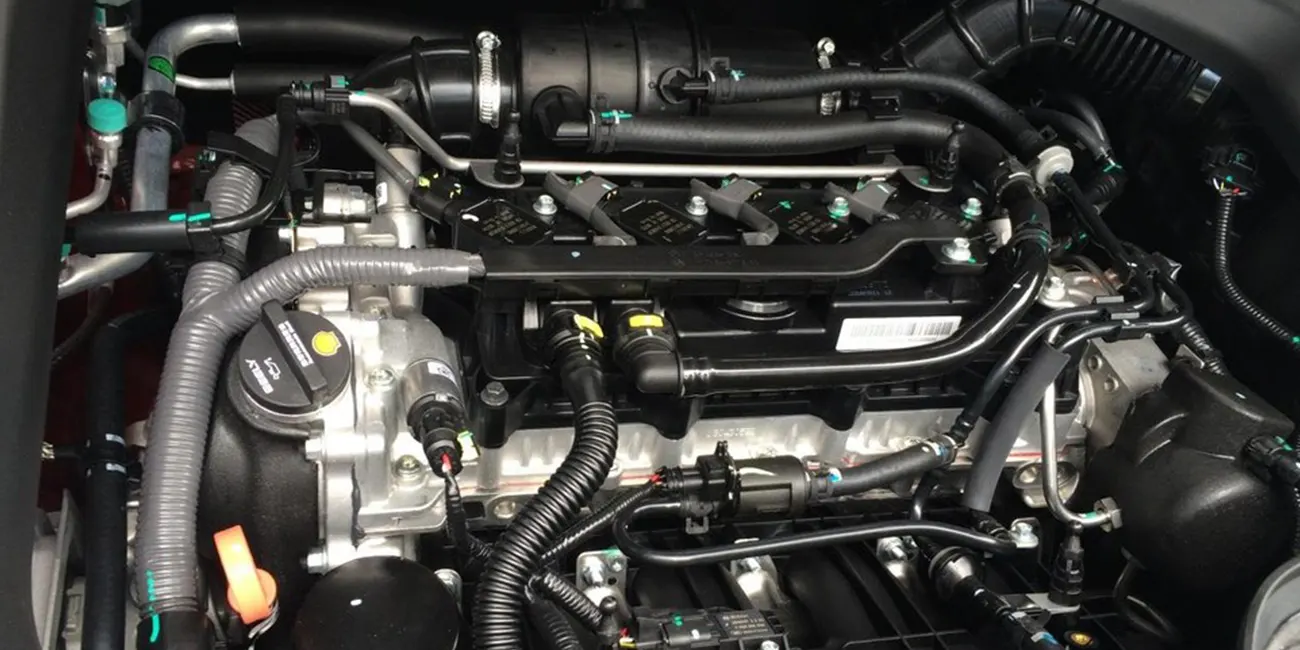

The engine bay is the worst address in the vehicle for a wiring harness: sustained heat above 100°C, radiant heat from the exhaust and turbo, oil and fuel contact, salt spray, and vibration across the full engine speed range. An engine harness built to cabinet-grade rules fails within months here. This guide summarizes what actually keeps engine harnesses alive for the life of the vehicle.
Temperature Zoning: The First Design Step
Effective engine harness design starts with a heat map. Zones are typically defined as: general engine bay (up to ~125°C), exhaust/turbo proximity (up to 150-200°C, requiring distance or shielding), and on-engine surfaces (requiring high-temperature retention clips and abrasion armor). Each zone dictates materials: cross-linked PVC or XLPE insulation for most runs, silicone or PTFE for the hottest sections, and fiberglass or basalt sleeving where radiant heat strikes. Our material selection guide compares the insulation families.
Fluid Resistance
Engine harnesses contact oil, fuel, coolant and battery acid over their life. Jacket and insulation materials must resist swelling and embrittlement in each: cross-linked compounds generally handle oil and fuel well; connectors in the lower engine area should be positioned above expected fluid paths; and drip loops prevent fluids from wicking along the loom into connectors. Where abrasion from clamps and sheet-metal edges is expected, textile-braided sleeving outperforms convoluted tubing because it does not crack at clamp points after heat aging.
Vibration and Strain Relief
An engine harness experiences continuous vibration plus torsional movement as the engine moves on its mounts. Design rules that matter:
- Never rigidly clamp a harness at both ends of an engine-to-body crossing; provide a service loop that flexes, not a taut span.
- Use positive-lock connector housings on every circuit subject to vibration; the withdrawal-force standard exists precisely for these interfaces.
- Abrasion protection wherever the loom touches anything — a rubbed-through insulation shows up years later as an intermittent fault that is miserable to diagnose.
Connector Selection
Engine-bay connectors need sealed housings (typically silicone seals on terminals and wire seals at the back), high-temperature housing materials (PA, PBT or PPS rather than commodity nylon), and locking systems that survive thermal cycling. Sensor circuits — crank, cam, knock, lambda — are low-level signals that deserve individual attention: a marginal connection here produces exactly the intermittent misfires that are hardest to diagnose. Our analysis of poor connector detection covers the failure mechanisms.
Testing and Validation
Beyond 100% continuity and hipot testing, engine harnesses are qualified with thermal shock cycling, fluid immersion sampling, vibration profiles on representative samples and pull-force verification of critical crimps. A supplier that cannot document these tests cannot honestly support an engine harness program.
