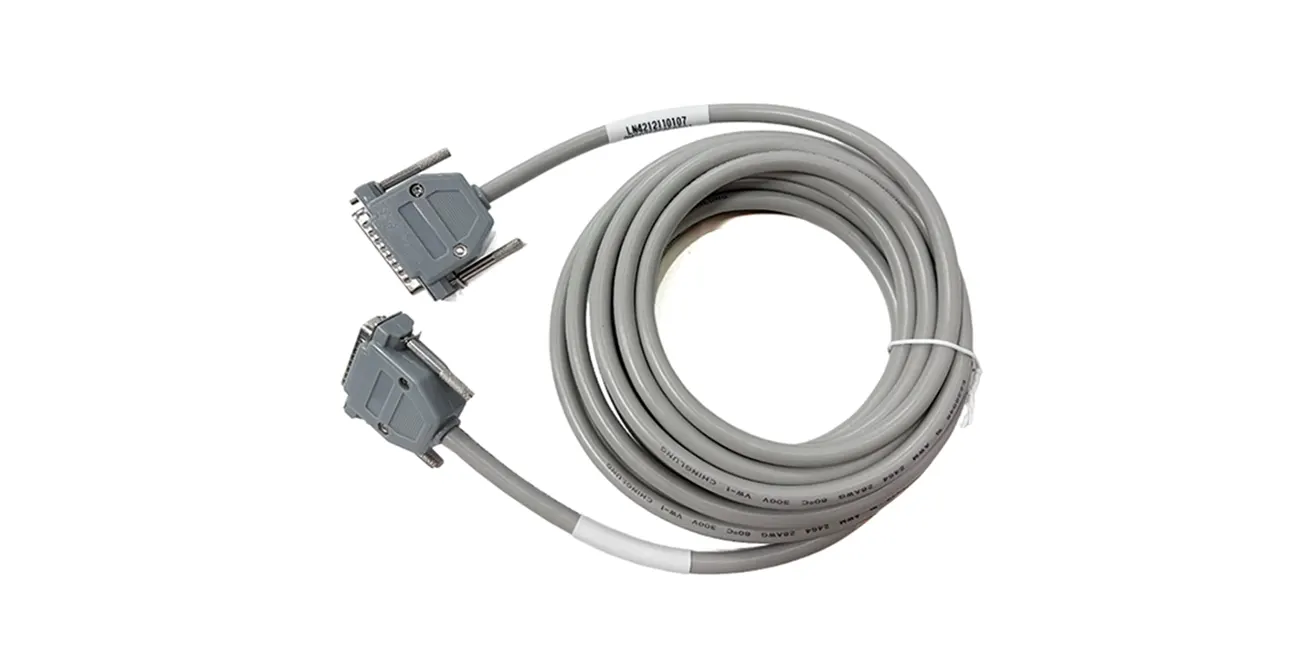

The DB-25 (DE-25 formally, DB-25 in everyday use) carried serial communications, printer interfaces and industrial I/O for decades, and it remains in active service in industrial equipment, instrumentation and legacy systems that refuse to die for good reasons. Assembling DB-25P male cable harnesses properly keeps those systems running — this guide covers the build.
Know What Your 25 Pins Carry
The DB-25's character depends entirely on its application: classic RS-232 serial (with its handshaking pin suite), parallel printer interfaces, GPIB-adjacent instrumentation wiring, or general-purpose industrial I/O where all 25 pins carry whatever the machine designer decided. The assembly implications follow the application: serial and instrumentation signals want individually considered grounds and shields; industrial I/O wants grouping by signal type (power, signals, grounds) to control crosstalk inside the bundle. The drawing's pin map is the source of truth — never convention.
Termination Options
DB-25 assemblies terminate three ways, each with its discipline:
- Solder-cup contacts: the traditional method — wires soldered into cups on the connector insert. Demands clean tinning, full cup fill without wicking past the cup, and insulation that survives the soldering heat. Best for repair and low volume.
- Crimp contacts: removable crimp contacts inserted into the shell — the production method, with calibrated crimp tooling and pull verification. Repairable and consistent.
- IDC ribbon termination: mass-termination into DB-25 IDC connectors on ribbon cable — the volume method for digital I/O, covered in our ribbon cable guide.
The Hood Does More Work Than the Connector
The DB-25's metal hood (backshell) is where shielding and strain relief live. Shielded assemblies terminate the cable shield to the hood for 360-degree coverage — a metal hood, screwed to a grounded panel, is what makes the shield real; plastic hoods make shielded cable theater. The hood's strain relief clamps the jacket (not the wires) so flex loads bypass the solder or crimp joints. Our shielded cable guide covers the termination mechanics.
Length, Crosstalk and Bundle Discipline
DB-25 carries up to 25 circuits in one bundle, so internal crosstalk is a design item: group power away from signals, twist noisy pairs where possible, and keep overall length honest — long DB-25 runs on fast signals misbehave in ways that shorter runs don't. Label both ends with the pin map; service on a 25-circuit harness without labels is archaeology.
Testing
Production: 100% continuity against the pin map (25 circuits means 25 chances for a swapped wire), hipot where the application warrants, and shield continuity for shielded builds. Sampled pull tests verify crimps on crimp-style builds.
Kaweei DB-25 Assembly Service
Kaweei builds DB-25P male and female assemblies — solder-cup, crimp and IDC terminations, metal and sealed hoods, standard and custom pin maps — with documented testing from our Dongguan facility, supporting industrial maintenance, instrumentation and legacy-system programs. Contact us with your pin map and environment; our D-sub cable guide covers the family broadly.
