OBD-II Wire Harness: The Diagnostic Port and Its Wiring

Every gasoline vehicle sold in most markets since the mid-1990s carries an OBD-II port — a standardized 16-pin diagnostic interface that connects scan tools, telematics dongles, fleet trackers and insurance devices to the vehicle's data. The OBD-II harness (port wiring and its cable ecosystem) is a standardized discipline worth knowing, whether you're building adapters or wiring a port into equipment. This guide covers it.

The 16-Pin Standard Pinout

The OBD-II connector assigns its pins by standard: pin 4/5 = chassis/signal ground, pin 6 = CAN high (J1850/SAE J1939-adjacent variants vary by market), pin 14 = CAN low, pin 7 = ISO 9141-2 K-line, pin 15 = L-line, pin 16 = battery +12V (permanent, fused), with remaining pins assigned to legacy protocols or reserved. The working reality: modern vehicles communicate over the CAN pins (6/14) with power from 16; legacy pins serve older protocols. The harness discipline: wire to the standard exactly — the standardization is the port's entire value, and 'creative' pinouts break the ecosystem of tools that expect it.

Port Wiring Construction

The vehicle-side port harness: 16-position receptacle with keying that prevents backward insertion, wire gauge sized for the power pin's duty (pin 16 feeds dongles and some trackers — fused at the vehicle side per the vehicle's design), twisted pair for the CAN run (our CAN-adjacent shield discipline applies — noise on the diagnostic bus affects the vehicle's own networks), and routing with the port's service duty in mind (diagnostic ports see repeated tool mating — the port's mounting and its harness strain relief survive hundreds of connections).

The Adapter and Cable Ecosystem

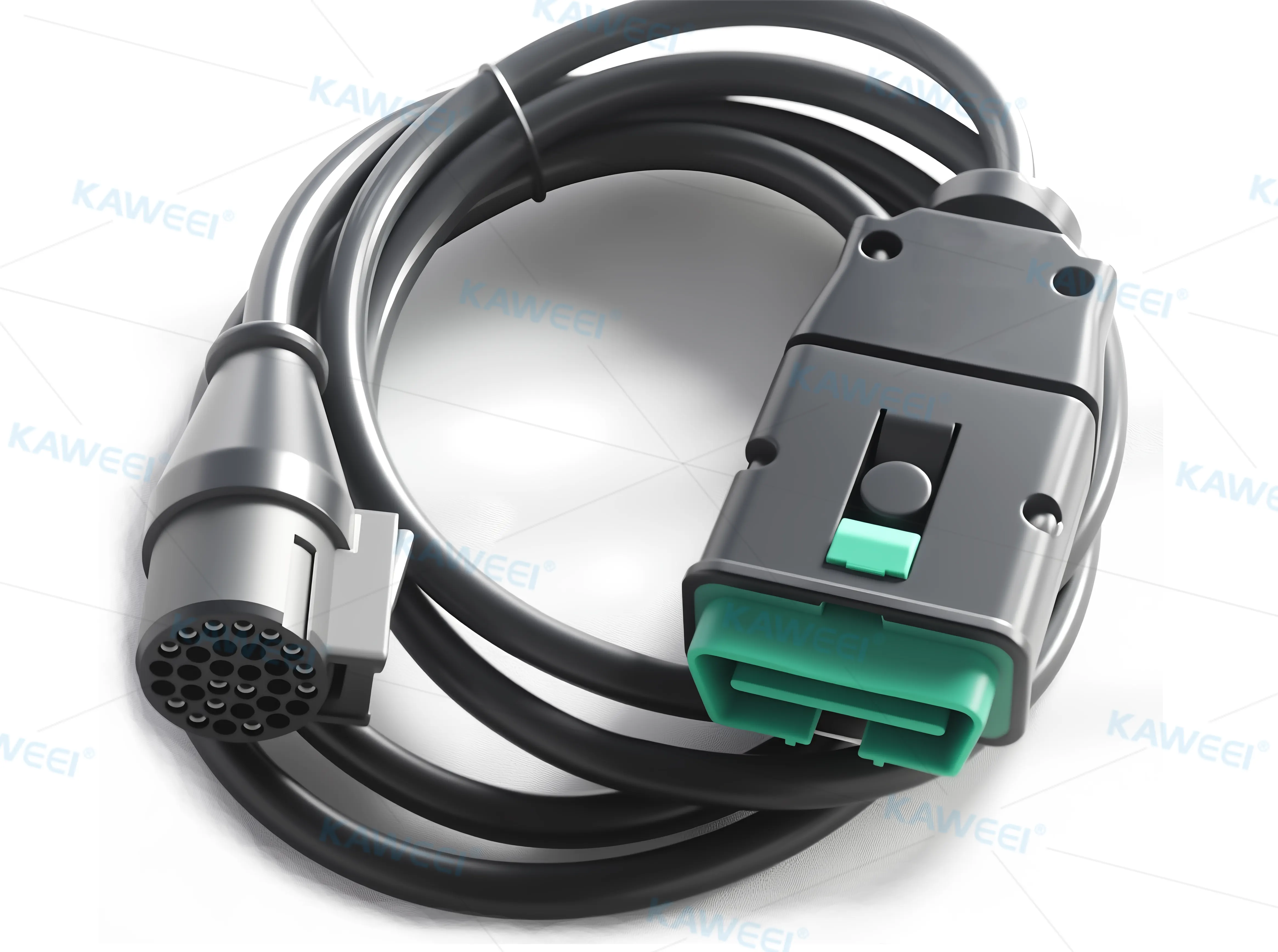

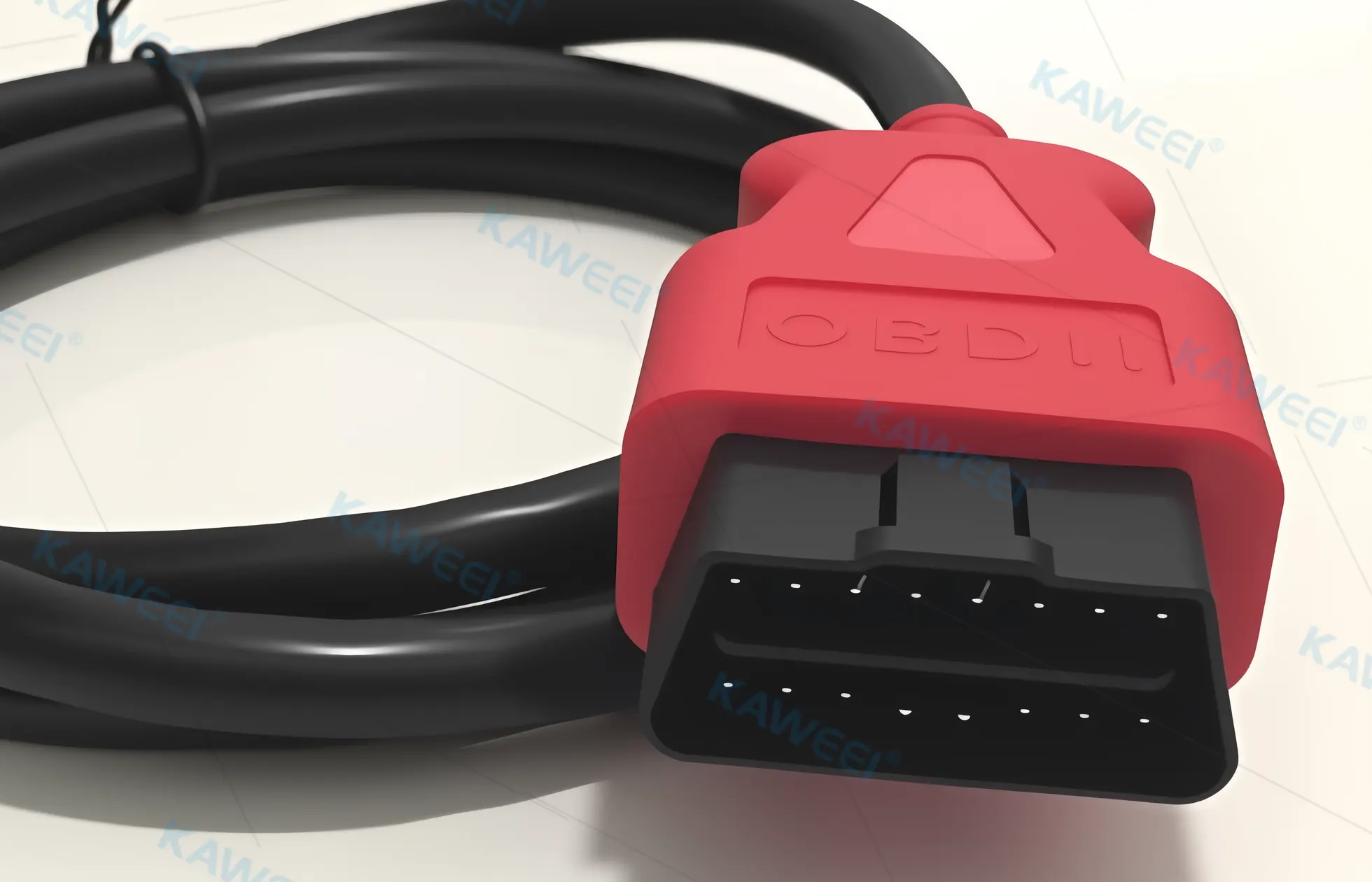

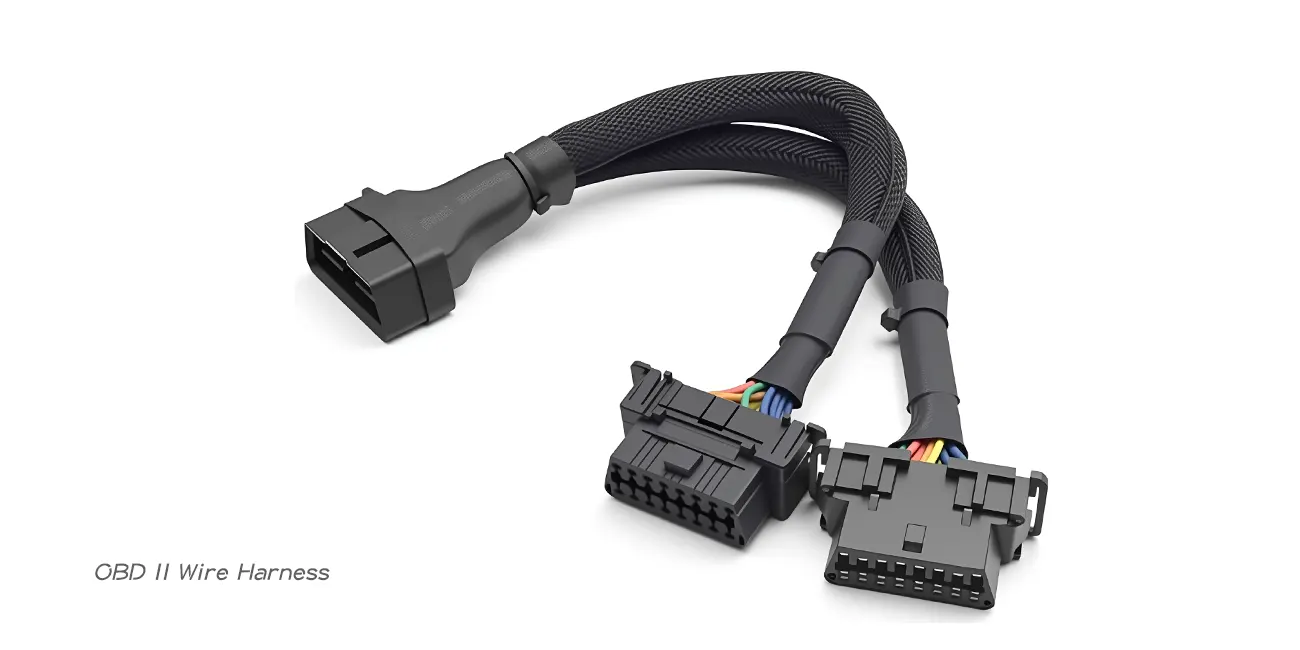

The commercial OBD-II harness market is mostly adapter cables: OBD-II to USB/serial for scan software, OBD-II to bare leads for telematics integration, extensions and right-angle variants for tight port locations, splitter and Y-constructions for multi-device installations (with the power-splitting considerations that multi-device draws create), and protocol-specific integrations for equipment that reads J1939-class commercial vehicle data. Construction requirements: exact pinout fidelity (100% continuity tested), connector quality at both ends (the vehicle connector sees mating cycles; the device end sees user abuse), and jacket/strain relief rated for the cabin duty these cables live in.

Quality and Safety Considerations

  • Pin 16 power discipline: the port's +12V is permanent (not ignition-switched) — devices and adapters drawing from it must respect the vehicle's battery drain tolerances, and harness builders must not create paths that bypass vehicle fusing.
  • Bus respect: poorly built adapters that load or mis-terminate CAN lines cause vehicle network faults — the adapter is a guest on a bus it must not disturb.
  • Keying and shell quality: the port's latch and shell take the mating force; cheap shells break the latch and leave cables hanging.
