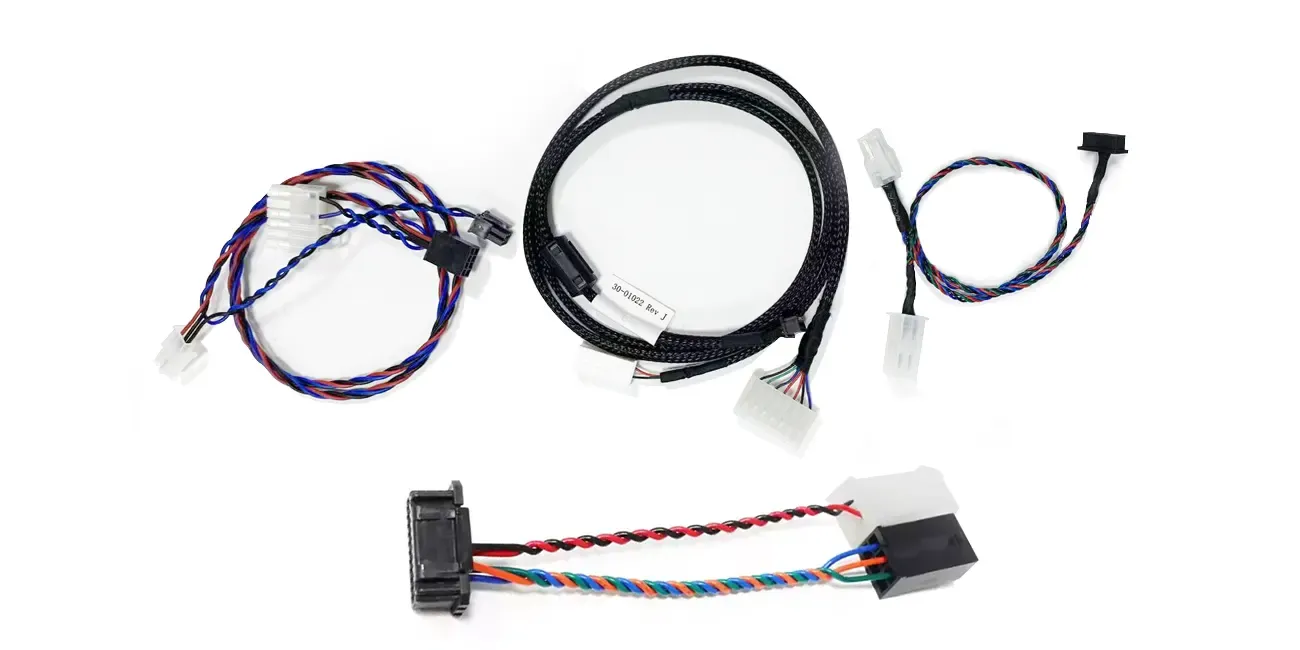

OEM Cable Adapter Harness
An OEM cable adapter harness is a customized wire assembly built to match exact device wiring, power transmission, and signal connection requirements. Unlike standard off-the-shelf wires, custom OEM cable harnesses deliver stable, tailored connectivity for industrial equipment, electronic devices, telecommunication hardware, and medical machinery.
At Kaweei, we provide one-stop OEM and ODM wire harness solutions covering professional engineering design, component selection, structural optimization, prototyping, and mass production. We help clients avoid mismatched connectors, unstable signals, and non-compliant wiring issues during product development and batch production.
Professional Engineering & Custom Design Service
Our wire harness manufacturing support goes beyond basic assembly. Our engineering team optimizes every detail based on your product structure, electrical parameters, and application environment.
- Custom wire harness drawing generation and design revision
- Professional component selection and qualified alternative part recommendation
- Electrical and mechanical performance optimization
- Cost-effective structural design without sacrificing stability
- Full compliance with industry safety and regulatory standards
We comprehensively evaluate circuit load, assembly space, market component supply, pricing, and certification requirements to deliver the most reliable and cost-efficient cable adapter harness solution for your project.
Connector: Mini-Fit Jr Male Connector Housing
Connector: Molex Mega-Fit Power Connectors1054110106
Molex Mega-Fit Power Connectors raise the bar for power interconnects with an innovative design that delivers high current density in a compact space, making them one of the most efficient mid-range power connectors in the industry.
Standard Wire Specification: UL1007 Electronic Wire
All our custom OEM cable adapter harnesses adopt UL1007 26AWG PVC wire, one of the most widely recognized internal wiring standards for electronic and industrial devices.
- Wire Model: UL1007 26AWG
- Insulation Material: PVC
- Rated Voltage: 300V DC
- Insulation Resistance: >10MΩ
- Available Colors: Red, Black, Blue, Green, Orange
UL1007 wire features stable insulation performance, strong anti-interference ability, and flexible bending resistance, perfectly suitable for internal power and signal connection of precision electronic equipment.
Compatible Molex Connector Series (Factory Matching Solution)
We support full-series Molex connector matching for OEM cable adapter harnesses, covering low-current signal and high-current power connection scenarios. All terminals and housings are precisely crimped and fully tested for stable mating and long-term service life.
1. Mini-Fit Jr Male Connector Housing
Mini-Fit Jr connectors are widely used for medium-power signal connections. Featuring a reliable locking structure and stable plugging performance, they are ideal for industrial control and household equipment internal wiring.
2. Molex Nano-Fit Power Connectors
Nano-Fit connectors support up to 8.0 A current transmission with a compact 4.20 mm pitch. Equipped with anti-misalignment keying options and TPA (terminal position assurance) retainers, they effectively prevent terminal back-out and ensure safe and accurate connection in compact device spaces.
3. Molex Mega-Fit Power Connectors
Mega-Fit power connectors provide high current density in a minimized structure, becoming one of the most cost-effective mid-range power connection solutions in the industry. They are widely applied in industrial power modules, automation equipment, and power supply units.
4. Molex Rectangular Connector
Housing Specification: Black, 0.049" (1.25 mm)
DigiKey Part Number: WM26767-ND
This miniature rectangular connector features a small size, high precision, and stable signal transmission, suitable for high-density internal wiring of precision electronic devices.
Our OEM & ODM Wire Harness Manufacturing Strengths
- Support full-process custom design from drawings to finished products
- Flexible order capacity: small-batch sample trial & large-scale mass production
- Standard UL1007 wiring and genuine Molex connector matching
- 100% conduction testing and appearance inspection before delivery
- Strict compliance with electronic industry safety and environmental standards
Conclusion
Custom OEM cable adapter harnesses with UL1007 wire and Molex connectors deliver stable, safe, and high-precision connection solutions for industrial, telecommunication, medical, and consumer electronic equipment. Kaweei integrates professional engineering design, precise component matching, and standardized manufacturing to meet your personalized wiring customization needs.
If you need custom OEM cable adapter harness or ODM wire harness assembly services, feel free to contact our team for technical support and a quotation.
