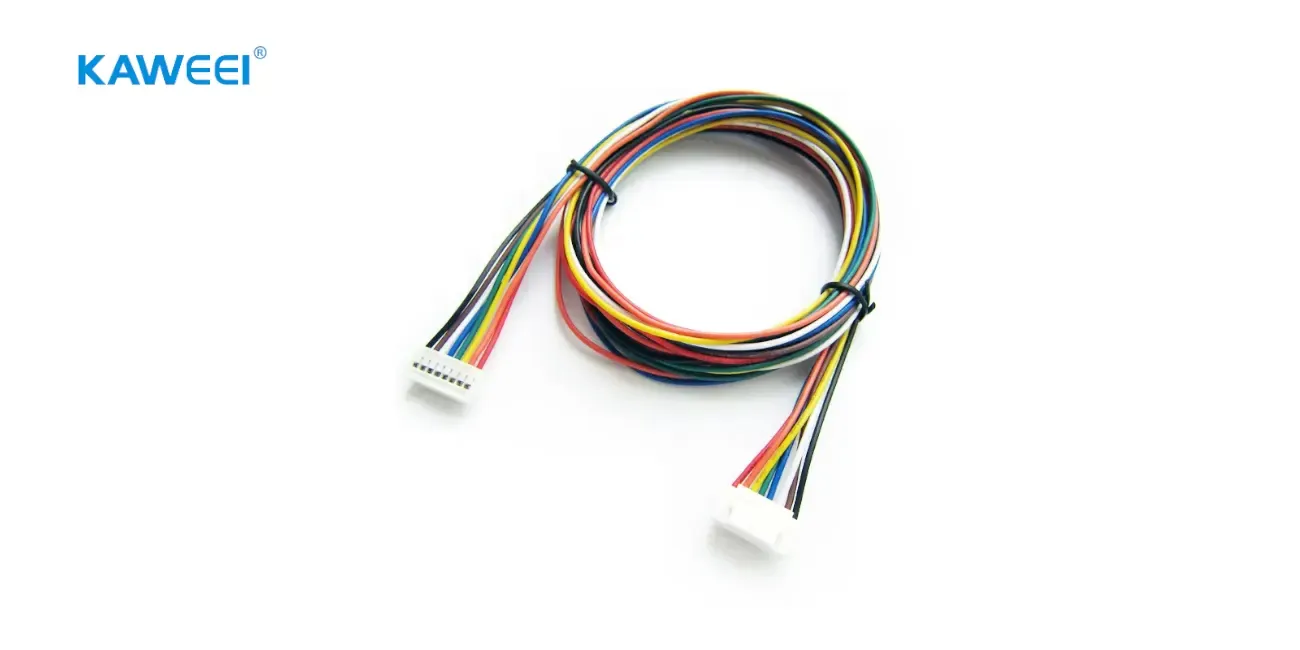

Our XH2.45 electronic wiring harness is a compact, high-performance custom cable assembly engineered for stable power and signal connections across consumer electronics, medical devices, industrial equipment, and new-energy systems. Featuring a standard 2.45mm pitch design, this wiring harness is perfectly optimized for miniaturized electronic devices, delivering consistent electrical stability and flexible customization to meet diverse project demands. We support full OEM and ODM personalized processing for all types of XH2.45 cable assemblies.
Whether you need standard or customized wiring harnesses for lithium battery packs, handheld portable devices, or industrial control units, we provide tailor-made XH2.45 cable assemblies that fully match your technical specifications and production needs.
XH2.45 Wiring Harness Specifications
- Connector: Standard XH2.45 pitch terminals, available in 2-pin, 3-pin, and 4-pin mainstream interface configurations, supporting customized pin layout designs

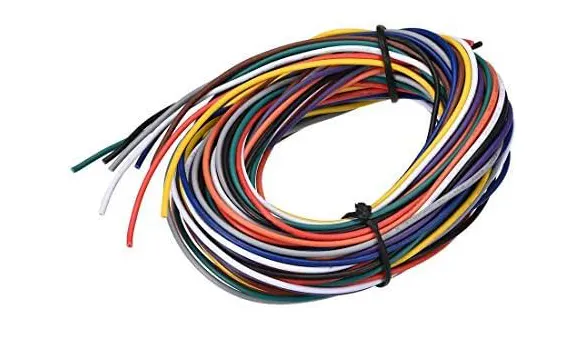

- Wire Gauge: Premium 22 AWG PVC tinned copper stranded hook-up wire with excellent conductivity and anti-oxidation performance
- Cable Options: Multiple color wire options for quick circuit identification and convenient product assembly
- Customization: Full customization of wire length, stripping size, pinout arrangement, connector type, cable color, product labeling and packaging solutions
- Compliance: Adopts RoHS and UL compliant environmental protection materials, meeting international industry safety standards
- Testing: 100% full electrical performance testing implemented before shipment to eliminate defective products
Key Features of XH2.45 Electronic Wiring Harness
- Compact 2.45mm pitch structure — perfectly suited for space-limited PCB installation and miniaturized device design
- Superior stable electrical performance — ensures long-term stable power transmission and accurate signal transmission
- Flexible custom specifications — supports 2-pin, 3-pin, 4-pin and non-standard custom pin configurations
- Global standard compliant — RoHS/UL certified materials, applicable for global market sales and project use
- Strict quality assurance — 100% electrical testing for every harness to guarantee stable product quality
- Professional OEM/ODM service — provides one-stop solutions from sample customization to mass production
Main Applications
Handheld Portable Devices
This XH2.45 wiring harness serves as an ideal power connection solution for various compact portable electronic products, widely used in lithium battery packs, handheld fans, electric scooters and other portable device power connection scenarios.
Industrial & Medical Equipment
With high stability and safety, the customized XH2.45 cable assembly is applicable for internal wiring matching of precision industrial control equipment and professional medical devices, fully meeting the strict durability and stability requirements of industrial and medical-grade equipment.
New-Energy Sector
It is extensively adopted for internal circuit interconnection of new-energy battery systems, providing reliable and safe connection support for new-energy equipment battery modules.
Advantages of Custom XH2.45 Cable Assembly Service
- Full OEM/ODM customization — strictly produced according to customer drawings, samples and technical requirements, supporting personalized wiring harness solutions for diverse industries
- Efficient sample service & low MOQ — supports small-batch trial production and prototype testing to accelerate product research and development progress
- Rigorous quality control system — every product undergoes complete electrical testing and multi-process quality inspection before delivery
- Multi-standard compliance — UL, CE, RoHS compliant product options to adapt to global project and market safety standards
- Stable delivery cycle — standard lead time of 7–15 days, efficiently meeting urgent project delivery needs
- 24-hour professional customer response — timely online consultation and technical support to solve your project doubts quickly
- Free DFM review service — professional technical team provides free design for manufacturability evaluation to optimize your harness solution and reduce production costs
- Professional factory direct supply — direct factory output with no middlemen, ensuring cost-effective and high-quality custom wiring harness products
Customization Options
We provide comprehensive personalized customization services for all XH2.45 wiring harness projects to meet your unique application needs:
- Custom wire length and precise wire stripping dimensions
- Multiple pin count options: 2-pin, 3-pin, 4-pin and custom special pin layouts
- Diversified connector types and installation orientation customization
- Optional cable colors and insulating material specifications
- Custom product labeling, branding and specialized packaging solutions
FAQ: XH2.45 Electronic Wiring Harness
Q: What is an XH2.45 wiring harness used for?
A: The XH2.45 electronic wiring harness is a compact universal cable assembly, mainly used for power and signal connections of lithium battery packs, handheld portable devices, industrial control equipment, precision medical devices and new-energy battery systems.
Q: Can you customize the cable length and pin count of XH2.45 harness?
A: Yes. We support full customization of cable length, stripping size, and pin configurations, including standard 2-pin, 3-pin, 4-pin and non-standard custom pinout designs.
Q: Do you provide XH2.45 wiring harness samples?
A: Custom samples are available for customer performance testing and project evaluation before mass ordering.
Q: What is the MOQ for custom XH2.45 cable assemblies?
A: Flexible low MOQ is supported to accommodate small-batch trial production and prototype development needs. You can contact us with your detailed project requirements for exact confirmation.
Q: What is the production lead time for custom XH2.45 wiring harness?
A: The standard production lead time is 7–15 working days, which will be adjusted according to your order quantity and customization complexity.
