The market for in-car devices — dashcams, GPS trackers, battery monitors, head-up displays, charging hubs, rear entertainment — runs on cable assemblies that must satisfy two masters at once: the device's electronics and the vehicle's electrical reality. A car-device cable that ignores the second master works on the bench and fails in the field. This guide covers designing and sourcing these assemblies properly.
Power: The Vehicle Is Not a Clean 12V
A vehicle's electrical system delivers anything from 9V during cranking to 15V+ during load dump transients, plus noise from alternators, injectors and switched loads. Device power cables respond with: adequate gauge for the device's real current (plus accessory creep — devices get firmware updates that consume more power), input protection designed with the vehicle in mind (fusing at the source, transient handling at the device), and connector selection for the tap point — fuse taps, OBD ports, battery lugs or hardwired rings, each with its own current and sealing requirements. For devices that must sleep without draining the battery, the cable may carry a switched/ACC circuit or the device handles it — a design decision that belongs in the cable specification conversation.
Data and Signal Lines
Devices with cameras, displays or external antennas carry data lines whose quality is visible to users: a dashcam's video cable is a signal-integrity product, not just a power lead. High-speed links need controlled-impedance construction (our high-speed harness guide covers the requirements); simpler serial and analog signals still deserve shielded or twisted constructions routed away from power runs through the same trim panels.
Cabin Environment Reality
The car cabin is a thermal cycling chamber: -30°C mornings, 80°C+ dash surfaces in summer sun. Cable jackets and connector housings must be rated for it — commodity PVC and housings crack and discolor within seasons. UV exposure near windshields, abrasion at trim-panel pass-throughs (grommets are mandatory, never bare-edge routing), and vibration on every termination complete the requirements list. Our automotive zone guide covers the cabin environment systematically.
Installation-Friendly Design
Car-device cables are installed by end users or quick-fit technicians, which changes design priorities: connectorized rather than hardwired wherever service is expected, tucking-friendly flat or thin constructions where trim gaps are tight, and length generosity at the routing-blind spots (A-pillars, headliners) rather than at terminations.
Kaweei Car Device Assembly Service

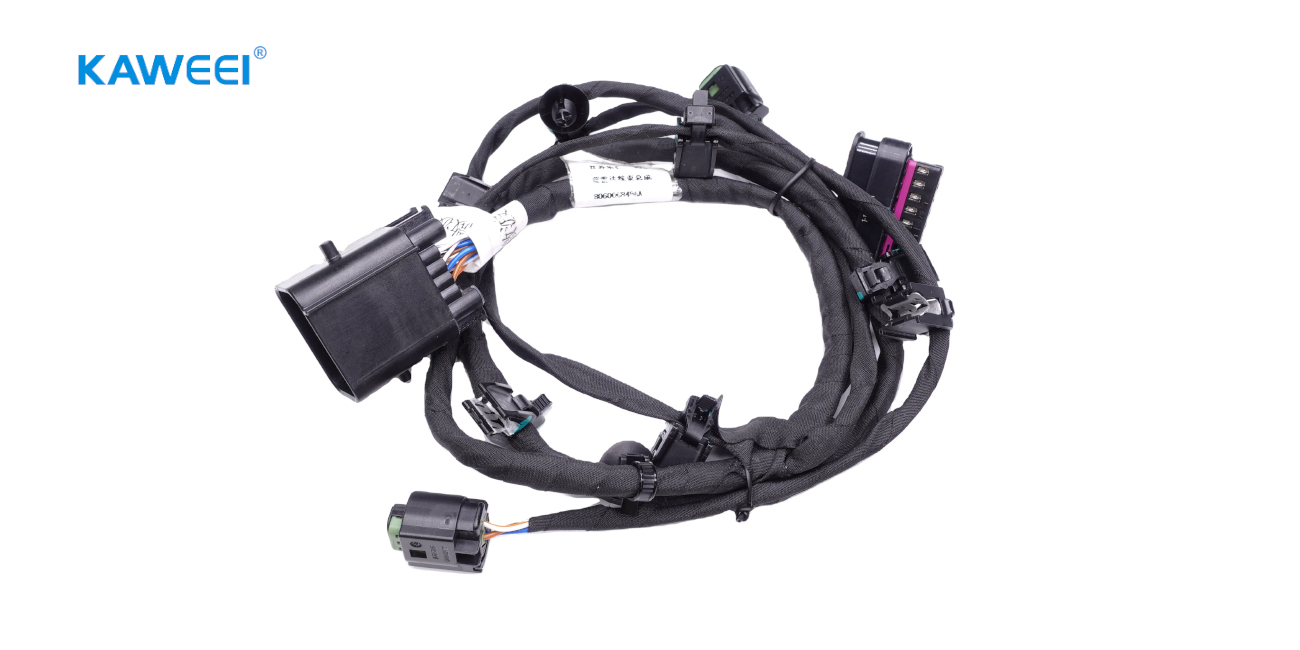

Kaweei manufactures customized automotive cable assemblies for device makers — power kits with vehicle-appropriate protection, shielded video and data leads, sealed exterior builds — from prototype through volume at our Dongguan facility. Contact us with your device's power and data requirements; see our automotive cable assembly guide for the broader program view.
