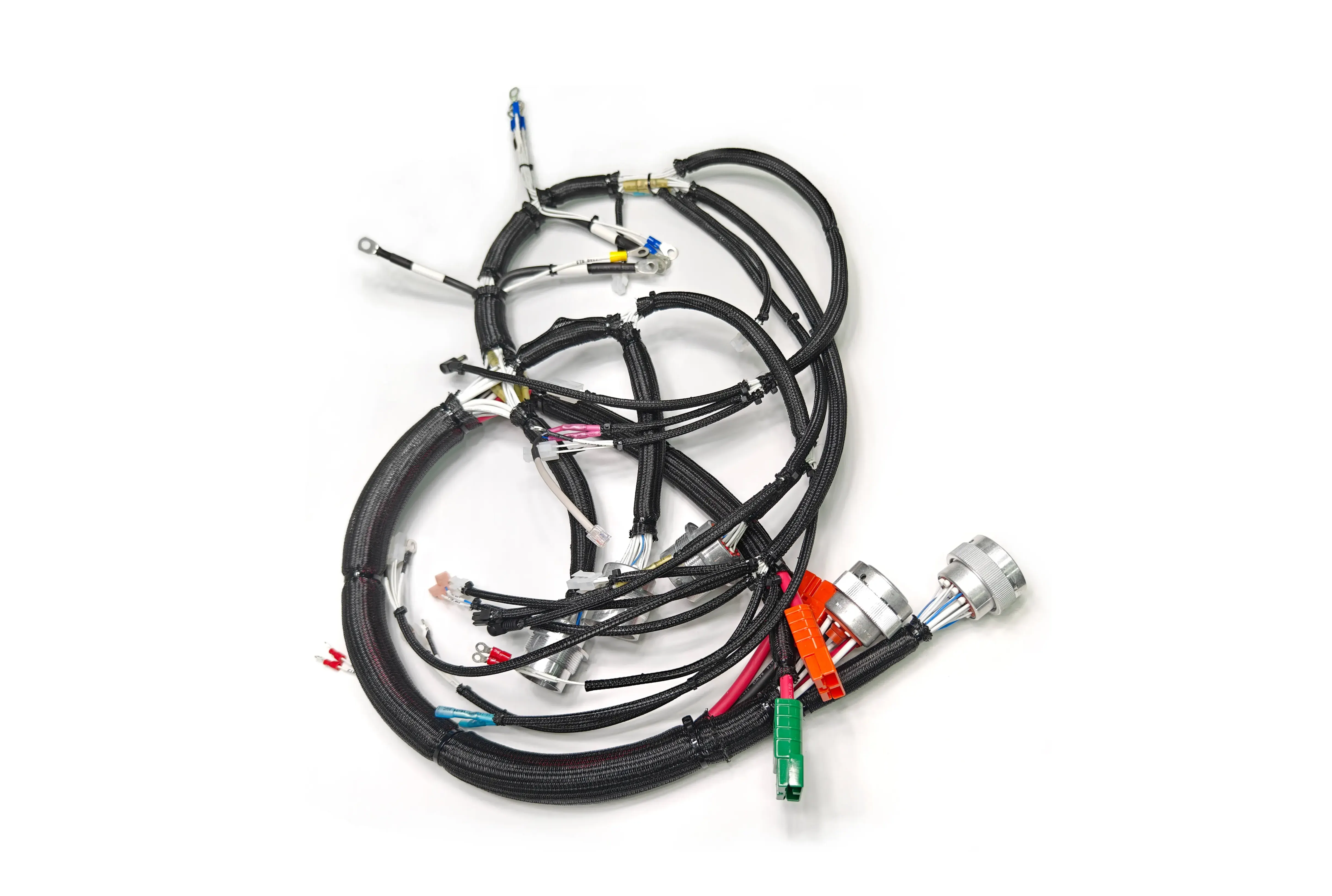

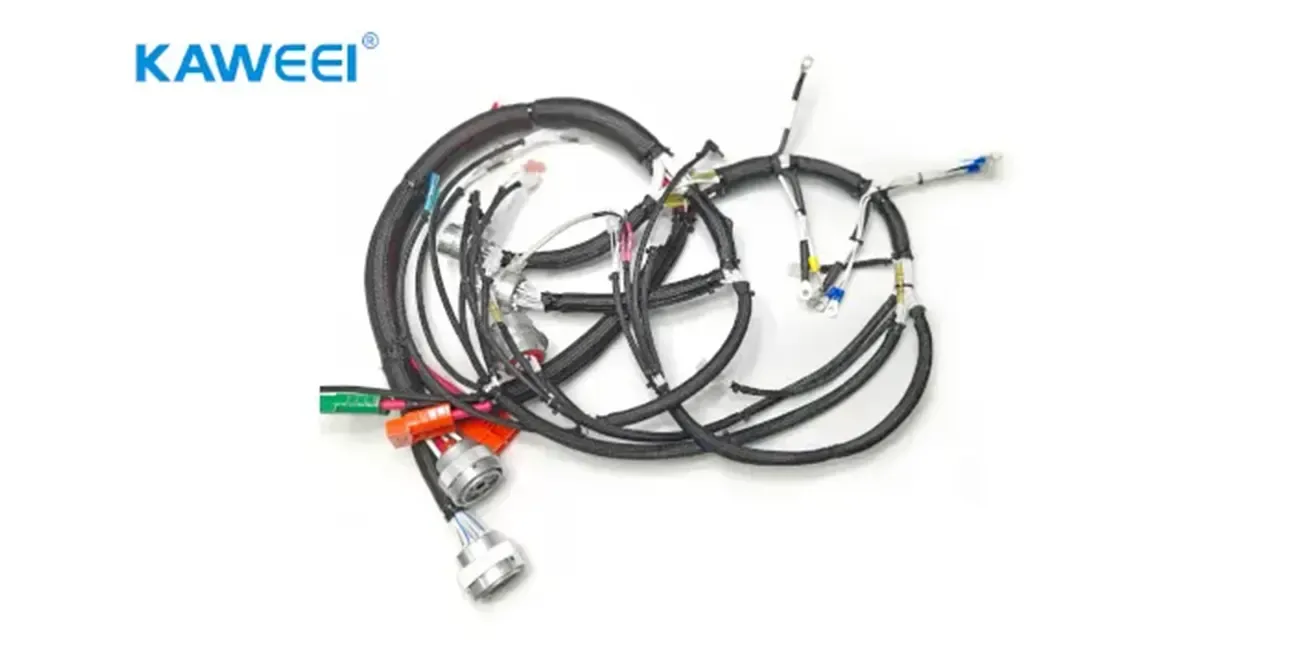

Custom Auto Electrical Wire Harness Assembly

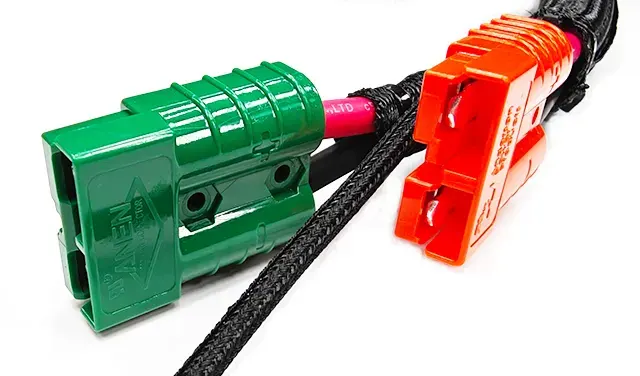

connector: Battery quick connect harness plug

Application areas: Remote battery chargers, power inverters, solar installations, trailers

Safety features: Both ends can be connected to the power supply or load side because they use the same connector. Both ends are designed to be connected in one direction, so there is no chance of wrong polarity, preventing accidental reverse connection when connecting the charger.

Connector: 29-pin automotive waterproof connector

Connector Description: DEUTSCH HD series male or female harness plug

Automotive Wire Harness Design Guide

• Material selection: The engine compartment uses high-temperature resistant PVC or Teflon.
• Original connector: JST or MOLEX connectors are more reliable.
• Harness optimization: Reduce turns and use heat shrink tubing to fix to prevent fatigue.
• Test plan: Verify the harness under simulated environmental vibration (vibration, humidity).

If you are interested in this automotive wiring harness, please get in touch with us. We can provide professional, customized solutions.
