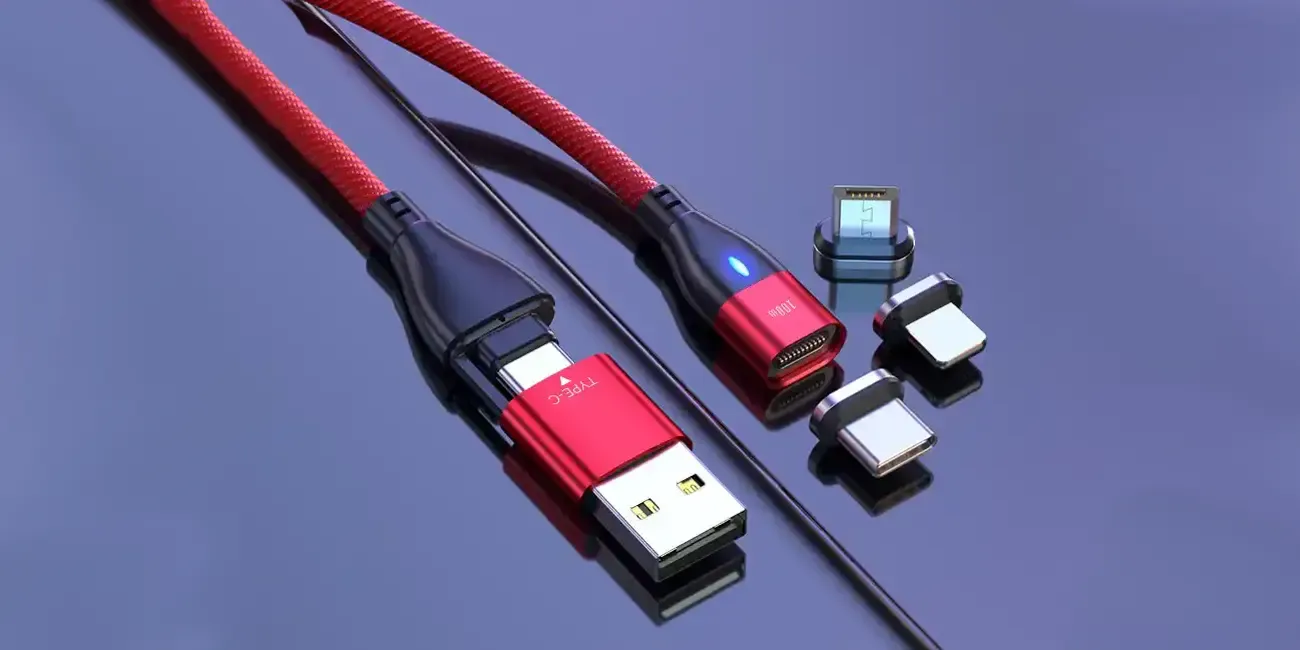

Magnetic Connector Harness Guide
1. What is a magnetic connector harness?
The magnetic connector harness uses magnetic force to automatically align and quickly connect, which can reduce installation and disassembly time, reduce wear, and ensure safe and reliable connections. Compared with traditional plug-in types, it is particularly suitable for scenarios with quick docking, frequent plugging and unplugging, and limited space.
2. Advantages of magnetic connector harness
Automatic attachment: Quickly and accurately dock even in low-light or high-vibration environments.
Anti-mating design: Prevents incorrect connections and reduces failure rates.
Durable: Reduces wear and tear during insertion and removal, extending lifespan.
Highly protective: Dustproof, waterproof, and EMI-resistant.
Simple appearance: Ideal for applications requiring aesthetics and easy cleanliness, such as medical and consumer electronics.
3. Comparison Table
| Comparative item | Magnetic connector harness | Traditional plug-in wiring harness |
| Connection method | Magnetic automatic adsorption | Manual plugging and unplugging |
| Alignment accuracy | Automatic alignment, high fault tolerance | Need to be aligned manually, easy to insert wrongly |
| Durability | Reduce mechanical wear and prolong service life | Large wear and tear during plugging and unplugging |
| Ease of operation | One-handed operation, quick connection | Requires both hands or greater strength |
| Protective ability | Waterproof, dustproof and EMI proof | Weak protective performance |
| Applicable scenarios | Medical, industrial, automotive, wearable devices | Medical, industrial, automotive, wearable devices |
4. Common application scenarios
Medical devices: Fast, hygienic connections
Wearable devices: Miniaturization, lightweight, and ease of use
Industrial automation: High-vibration, frequent plugging and unplugging environments
Automotive electronics: Anti-mismating and vibration-resistant designs
5. Customizable Solutions
Kaweei offers a variety of custom magnetic connector harnesses, including:
- Flat Type (easy to clean, ideal for medical applications)
- Male and Female Type (stable docking in industrial applications)
- Ring Magnetic Type (even adhesion, suitable for consumer electronics)
- Multi-pole Design (high-speed data transmission)
- Rotating Design (360° flexible charging dock)
6. Quality Assurance
Safety Certifications: Compliant with UL, CE, and RoHS standards
Reliability Testing: Comprehensive testing for magnetic properties, conductivity, waterproofness, and dustproofness
Mass Production Capability: Stable supply from prototype to mass production
Whether it is new product development or mass production, Kaweei can provide you with highly reliable and cost-effective magnetic connector harness solutions. If you need a customized harness, please contact us.
