A Complete Analysis of UL1569 Wires: Standards, Performance, and Application Guidelines

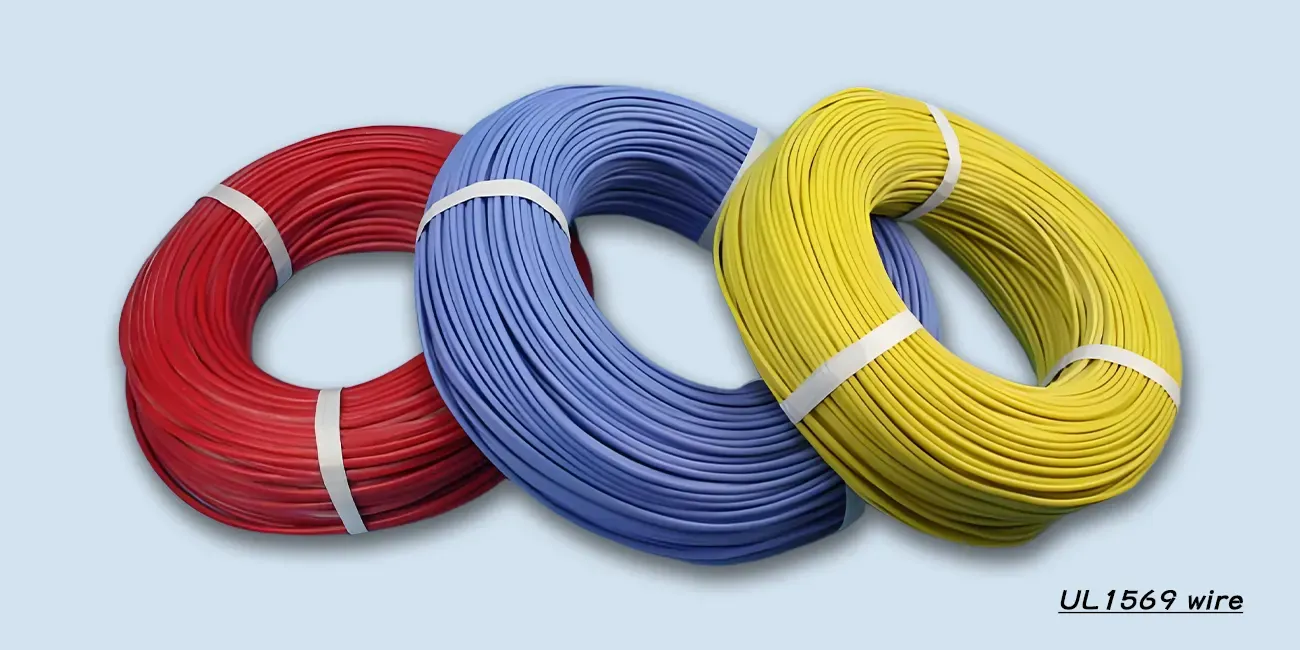

UL1569 wire is one of the most widely used UL-certified electrical cables in electronics manufacturing and electrical engineering. With its 300V rated voltage, excellent temperature resistance (-20°C to 105°C), and flame-retardant PVC insulation, UL1569 wire is widely used in home appliances, lighting, communications equipment, and industrial automation. This article will comprehensively analyze the characteristics, certification standards, common applications, and common problems of UL1569 wires to help you quickly understand and correctly select them.

1. What is UL1569 wire?

UL1569 wire. This type of wire meets UL standards and is commonly used for internal wiring in equipment. It is characterized by its heat and pressure resistance, excellent flexibility, and flame retardancy.

2. What is the CSA TR-64 ​​standard for electrical wires?

CSA TR-64 ​​is a certification standard for electrical wires developed by the Canadian Standards Association. It complements UL certification and ensures that electrical wires meet North American market requirements for safety, flame retardancy, and mechanical properties.

3. What are the wire gauges for UL1569 wires?

The common wire gauges for UL1569 cables range from 22AWG to 16AWG, suitable for wiring needs with low to medium currents.

4. What are the colors of UL1569 wires?

Common colors include: black, red, yellow, green, blue, white, and brown. Different colors are used to distinguish circuits and manage wiring, improving installation and maintenance efficiency.

5. What insulation material is used for UL1569 wire?

UL1569 wire uses PVC (polyvinyl chloride) insulation, which is heat-resistant, flame-retardant, and highly flexible, making it one of the most commonly used insulation materials.

6. What is the rated voltage of UL1569 wire?

The rated voltage is 300V, which meets the internal wiring requirements of most electronic devices and appliances.

7. What is the difference between UL1569 and UL1007?

• UL1569: Rated 300V, temperature range -20°C to 105°C.
• UL1007: Rated 300V, temperature range -10°C to 80°C.

UL1569 wire is more resistant to high temperatures and is suitable for applications with more stringent environmental requirements.

8. What is the difference between UL1569 and UL1015?

• UL1569: Rated voltage 300V, primarily for use within electronic equipment.
• UL1015: Rated voltage 600V, suitable for high-voltage and industrial electrical applications.

9. What does dual UL1569 AWM wire rating mean for UL1007 wire?

Dual-certified wire combines the performance advantages of UL1569 and UL1007, offering high-temperature resistance and general wiring requirements, providing greater application flexibility.

10. What applications are UL1569-compliant wiring harnesses suitable for?

• Internal wiring for home appliances
• Industrial automation equipment
• LED lighting systems
• Communications equipment
• Computers and peripherals
• Automotive electronics

11. FAQs: Frequently Asked Questions About UL1569 Cables

Q1: Can UL1569 cables be used outdoors?

A1: They are primarily used for indoor equipment wiring. For outdoor use, additional protective measures (such as waterproof sheathing and UV-resistant materials) are required.

Q2: Does UL1569 wire comply with CSA standards?

A2: Some UL1569 wires are also CSA TR-64 ​​certified and suitable for the North American market.

Q3: Are UL1569 and UL1007 wires interchangeable?

A3: UL1569 can replace UL1007 in high-temperature applications; however, for general-purpose applications, UL1007 is more economical.

12. Conclusion

UL1569 wire is a comprehensive, stable electronic wiring solution. It is widely used in industries such as home appliances, industrial automation, and lighting. Compared to UL1007 and UL1015, UL1569 wire offers a more balanced combination of temperature resistance and electrical performance, making it an ideal choice for engineers working with internal wiring and harnesses.
